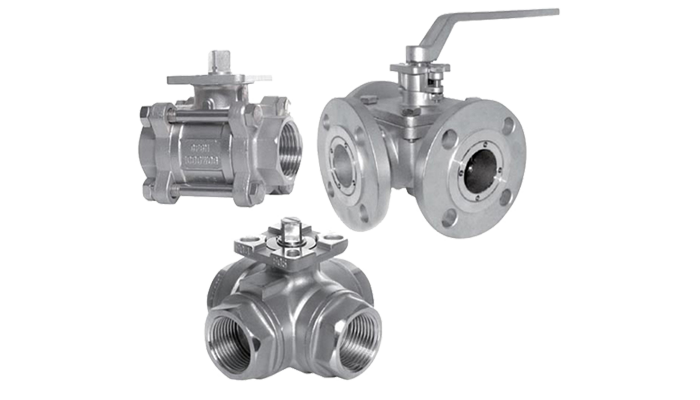

Valve Series
Size Range
NPT ¼ to 4 / DN 8 to 100
Body Materials
WCB, Stainless Stee
Maximum Allowable Operating Pressure
1000 psi (64 Bar)
Stem Materials
316 Stainless Steel
Temperature Range
-50°F to 550°F (-46°C to 287°C)
Seat Materials
PTFE(EPDM), Viton, RTFE, PEEK, EPT
Body Style
2 or 3 Piece
Ball Materials
Stainless Steel
End Connections
Threaded ASME B1.20.1 NPT
Socket Weld ASME B16.11
Butt Weld MSS SP-72 /ASME B16.25
Flanged ASME Class 150
Actuators
Pneumatic or electric
Shutoff Rating
Zero
Applications
Wastewater, Seawater, Water, other liquids and gases
