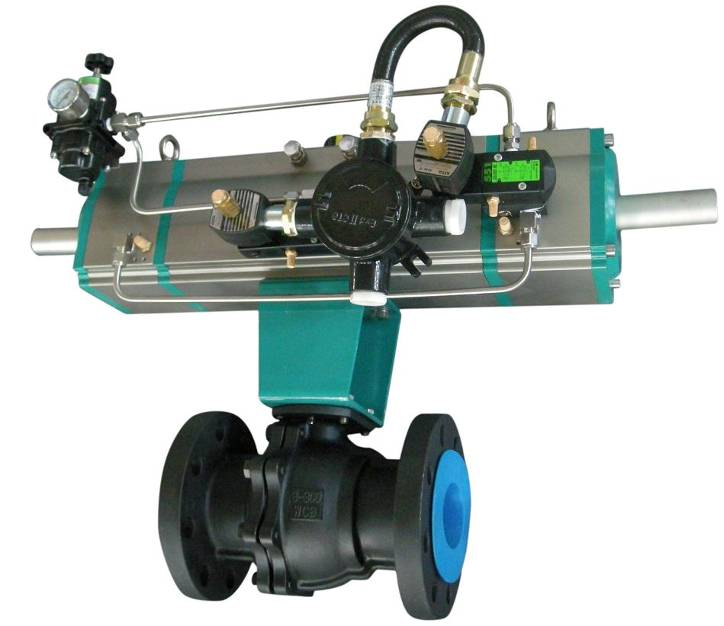

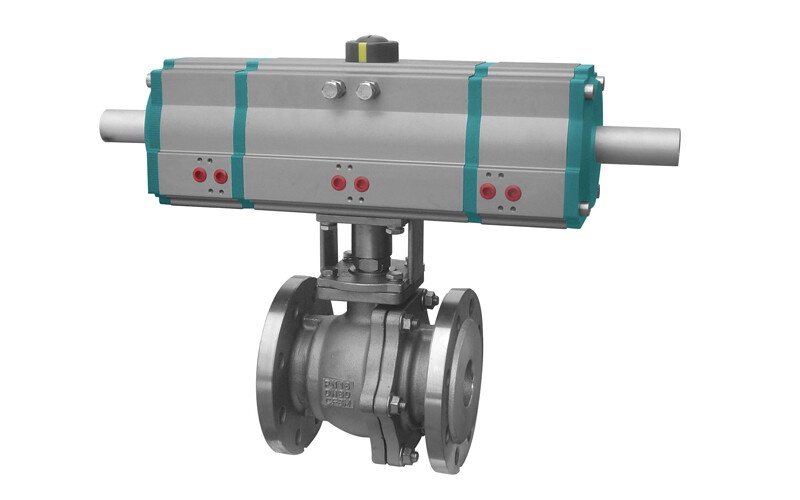

Flanged Ball Valve
Simmel pneumatic ball valves with 0.4-0.8MPa air source operation, available in floating/fixed/V-type designs for water, gas, oil pipelines. Explosion-proof & low resistance.
Valve Series
Size Range
NPS 2 to 24 / DN 50 to 600
Body Materials
WCB, Stainless Stee
Maximum Allowable Operating Pressure
C15: ASME Class 150 C30: ASME Class 300 PN10, 16, 25, 40
Stem Materials
316 Stainless Steel
Temperature Range
-50°F to 650°F (-46°C to 343°C)
Seat Materials
PTFE(EPDM), RTFE, Viton, Silicone, PEEK,
Face To Face
ASME B16.10, Manufacturer Standard
Disc Materials
Stainless Steel, Alum Bronze, Ductile Iron Covered Nylon, Stainless Steel Covered F46
Shutoff Rating
Cllass VI
Face To Face
ISO05752, DIN3202
Body Style
Flange
Testing Standard
AIP 598
Flange Drilling
ASME B16.1 Class 125, ASME B16.5 Class 150, ASME B16.47
Actuators
Pneumatic or electric
Certifications
ABS, ATEX, DNV, PED, SIL
Applications
High Purity, Semi Conductor, Food & Beverage,General Service, Air, Water, Oil & Gas
