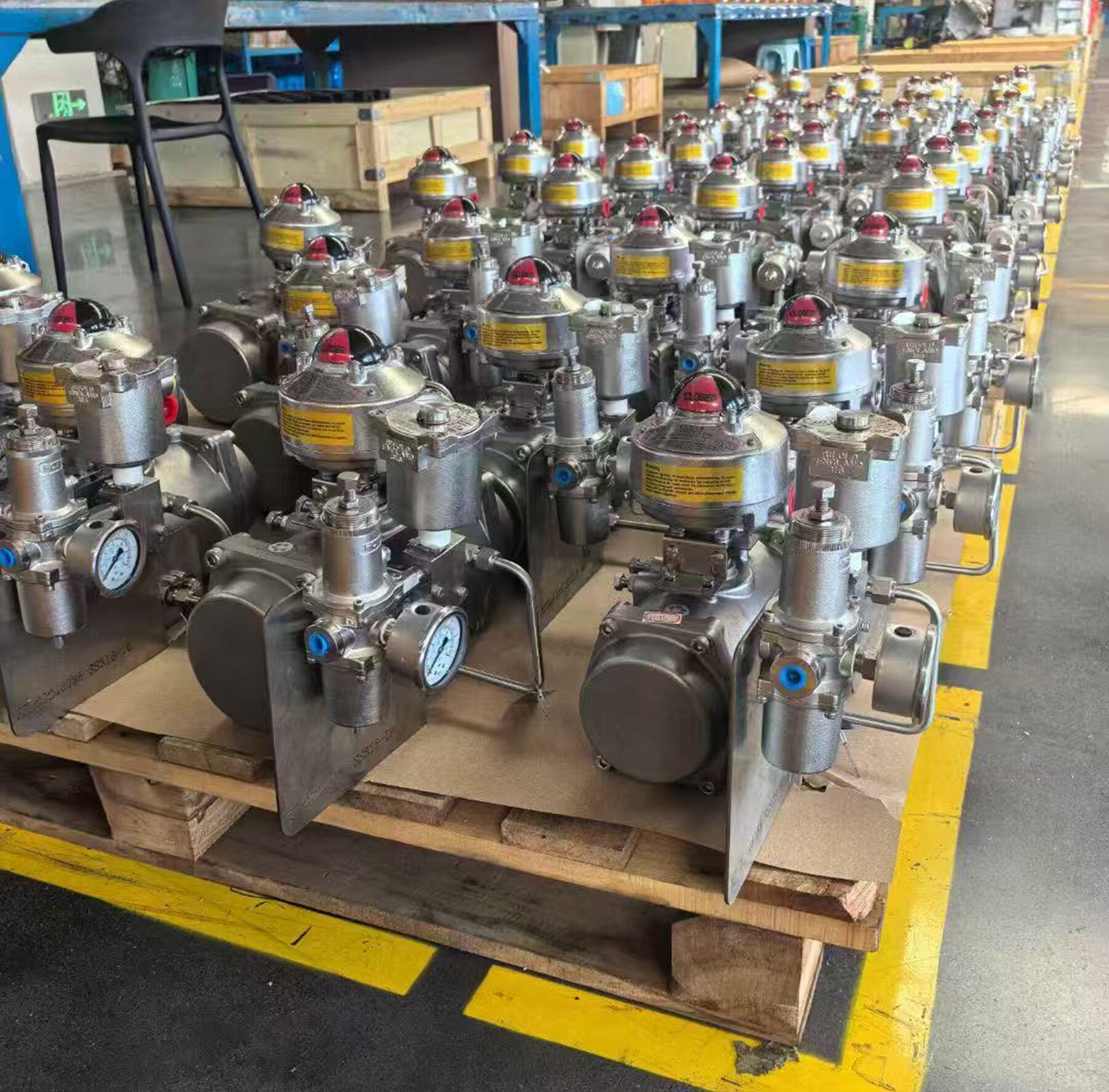

SS304, SS316 stainless steel actuators, with electrolytic polishing on the surface, smooth and beautiful;
Double piston toothed gear rack design, compact structure, symmetrical installation position, and easy to change output shaft steering;
The back of the piston rack is equipped with composite bearings and guide rings, which have a low friction coefficient; Combined pre load coated spring;
Gear and rack, with small meshing clearance, high accuracy, and high output power; Stainless steel fasteners, safe and aesthetically pleasing;
Applicable dimensions: output shaft groove, screw hole;
NAMUR standard for top mounting hole size;
NAMUR standard for air source interface size;
The bottom mounting hole size is in accordance with ISO5211 and DIN3337 standards,
Making it easy to install solenoid valve limit switch accessories.
Interface standards:
The interface between the actuator and valve complies with ISO5211 and DIN3337;
The interface between the actuator and control valve (solenoid valve) complies with NAMUR;
The interface between the actuator and signal unit complies with NAMUR;
Travel range and on-off position angle adjustment:
0 °~90 ° ± 5 ° or 0 ° ± 5 °~90 ° (the piston has an adjustment range of ± 5 ° at both ends)
