Wafer Type Butterfly Valve, Cast Iron Butterfly Valve, Stainless Steel Butterfly Valve, Size NPS 2 to 24, Temperature Range -22°F to 320°FDiscover the Wafer Type Butterfly Valve, available in sizes NPS 2 to 24 / DN 50 to 600. Made from durable materials like Cast Iron and Stainless Steel, it operates efficiently in temperatures from -22°F to 320°F.
Wafer Type Butterfly ValveSize Range
NPS 2 to 24 / DN 50 to 600
Temperature Range
-22°F to 320°F (-30°C to 180°C)
wafer lug butterfly valve, NPS 2-24, DN 50-600, cast iron valve, ductile iron valve, carbon steel WCB valve, stainless steel valve, temperature range, industrial valves, flow controlDiscover our range of high-quality wafer lug type butterfly valves suitable for NPS 2 to 24 / DN 50 to 600 pipelines. Made from cast iron, ductile iron, carbon steel WCB, and stainless steel, these valves are designed for durability and versatility. OperWafer Lug Type Butterfly ValveWafer Lug type butterfly valve, with centric disc and bonded liner.
100% bi-directional bubble tight shut off.
Applicable for all kinds of industries, especially shipbuilding, petrochemical, heavy industry, water treament, civil enginerring and dyeing and finishing.
Overall design generally in accordance to BS EN-593
Face to face dimension in accordance to ISO05752, DIN3202
Top flange and shaft end in accordance to ISO-5211
Working pressure from 0.1 bar absolute up to 16 bar (test pressure 17.6 bar)
Working pressure up to 25 bar (test pressure 27.5 bar) on request
Suitable as end of line service valve
DN40 - DN1200
Mounting between flanges to DIN PN10, DIN PN16 or ASME class 150

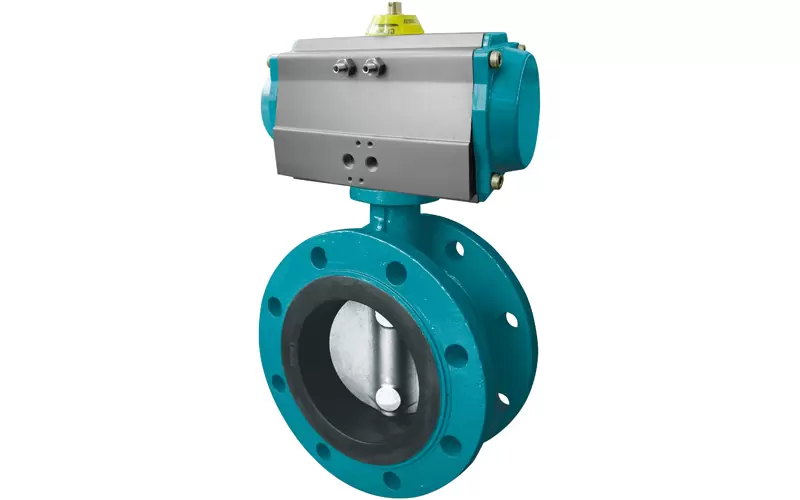

Other executions on request- flange butterfly valve, NPS 2-24 valves, DN 50-600 valves, cast iron valves, ductile iron valves, carbon steel WCB valves, stainless steel valves, temperature range valves, industrial valves, flow control valvesDiscover our range of flange type butterfly valves suitable for NPS 2 to 24 / DN 50 to 600 sizes, crafted from premium materials like cast iron, ductile iron, carbon steel WCB, and stainless steel. These valves offer reliable performance within a wide teFlange Type Butterfly ValveWafer Lug type butterfly valve, with centric disc and bonded liner.
100% bi-directional bubble tight shut off.
Applicable for all kinds of industries, especially shipbuilding, petrochemical, heavy industry, water treament, civil enginerring and dyeing and finishing.
Overall design generally in accordance to BS EN-593
Face to face dimension in accordance to ISO05752, DIN3202
Top flange and shaft end in accordance to ISO-5211
Working pressure from 0.1 bar absolute up to 16 bar (test pressure 17.6 bar)
Working pressure up to 25 bar (test pressure 27.5 bar) on request
Suitable as end of line service valve
DN40 - DN1200
Mounting between flanges to DIN PN10, DIN PN16 or ASME class 150
Other executions on request

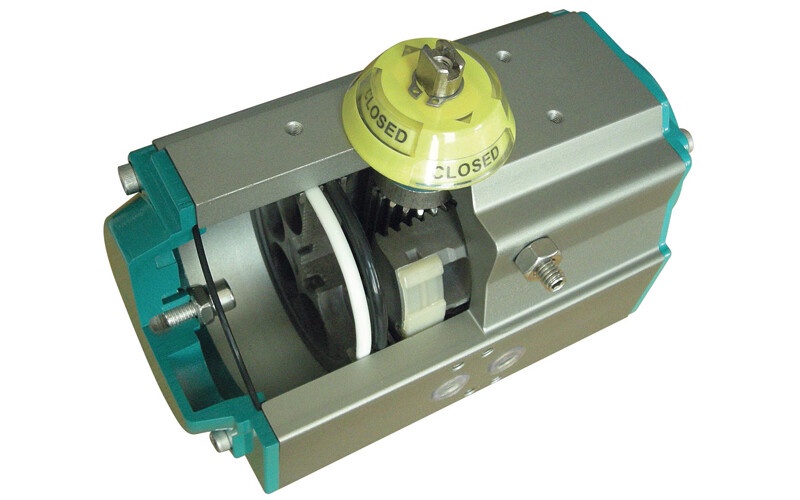

SL Pneumatic Actuator, Double Acting Actuator, Spring Return Actuator, High Torque Actuator, Industrial Pneumatic ActuatorDiscover the SL Pneumatic Actuator with high torque output (12 to 13,024 Nm) and versatile control options. Ideal for temperatures from -40°F to 300°F. Perfect for industrial applications.SL Pneumatic ActuatorSIMMEL SL series actuators are made of American standard aluminum alloy material with high-precision extrusion molding, using globally leading high-precision CNC machining technology and special mold technology for natural rubber sealing rings, providing dynamic sealing service life. The gear shaft and rack piston have been optimized for modulus structure data processing, resulting in higher operating frequency, higher precision control valve operation, and longer service life.- RT Pneumatic Actuator, Double Acting Actuator, Spring Return Actuator, High Torque Actuator, Pneumatic Control OptionsExplore the RT Pneumatic Actuator, offering double acting torque from 106 to 115,272 in-lb and spring return from 97 to 58,273 in-lb. Ideal for on-off, throttling, and temperature ranges from -40°F to 300°F.RT Pneumatic ActuatorThe SIMMEL RT series gear rack pneumatic actuator has 18 sizes of spring return or double acting models to choose from. Designed to achieve automated control of angular stroke valves such as ball valves, butterfly valves, and plug valves. The RT series adopts American standard high-quality extruded aluminum cylinder body and cast aluminum end cap, precision processed hard oxidation treatment, natural rubber seals, and the outer surface is coated with metal powder metallurgy or epoxy resin spray coating treatment.
- ART Pneumatic Actuator, Double Acting Actuator, Spring Return Actuator, High Torque Actuator, Industrial ActuatorDiscover the ART Pneumatic Actuator with double acting and spring return options, offering output torque from 106 to 115,272 in-lb. Ideal for industrial applications with a temperature range of -40°F to 300°F.ART Pneumatic ActuatorHigh Perfomance Pneumatic Actuator
Output Torque
Double Acting 106 to115,272 in-lb (12 to 13,024 Nm)
Spring Return 97 to 58,273 in-lb (11 to 6,584 Nm)
Temperature Range
-40°F to 300°F (-40°C to 150°C)
Inlet Supply Pressure
Up to 120 psig (8 Bar)
Type Double Acting Spring Return
