Pneumatic Ball Valve

compose

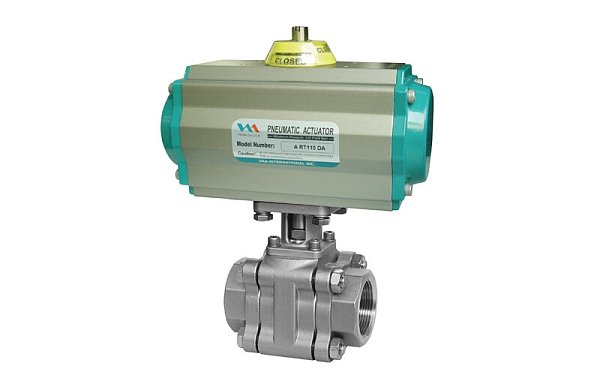

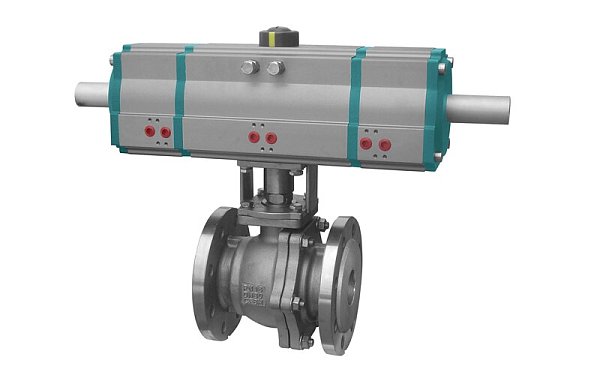

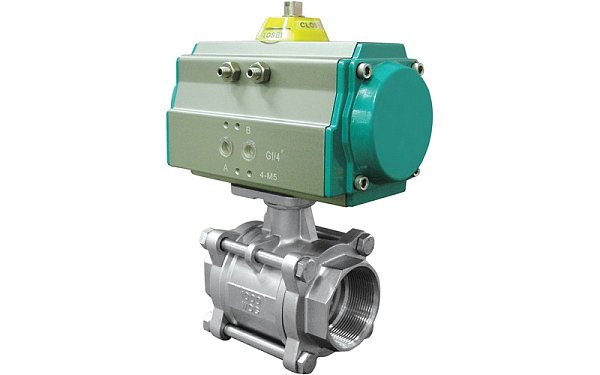

Pneumatic actuator + ball valve body, driven by air source at 0.4~0.8MPa, 90° opening and closing.

• Double-acting: maintains position in case of air failure; single-acting: spring return, automatically switches off when air fails.

• Optional: solenoid valve, trio, repeater, positioner.

Classification

Floating ball: DN15~100, soft sealing, suitable for water, gas, and weak acids

2. Fixed ball: large caliber high pressure, oil and gas

3. V-type ball: with locator, flow regulation, and slurry containing impurities

Material: Carbon steel WCB, 304/316, plastic UPVC; Connection: Flange/threaded/strapping.

characteristic

Low flow resistance, fast switching, explosion-proof, and easy maintenance.

purpose

Chemical, water treatment, gas, food, and oil pipeline flow control/adjustment.

selection

Bore, pressure, medium temperature, opening/closing, loss of air condition.
