Simmel Actuators
‹
›

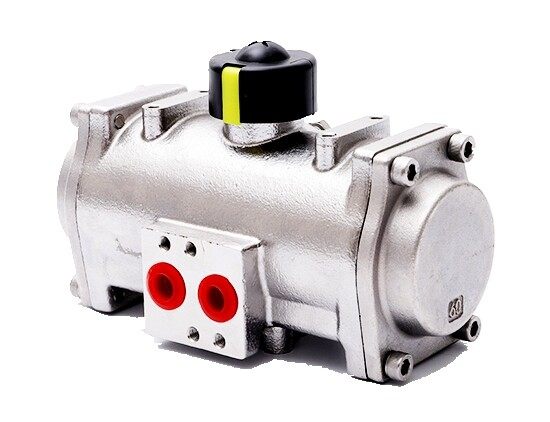

Stainless Steel pneumatic actuator
SIMMEL stainless steel actuators are widely used in petrochemical, shipping, food and pharmaceutical, offshore operations and other industries.
Actuator Series
Output Torque
Double Acting 106 to115,272 in-lb (12 to 13,024 Nm)
Spring Return 97 to 58,273 in-lb (11 to 6,584 Nm)
Temperature Range
-13°F to 176°F (-25°C to 80°C)
-40°F to 176°F (-40°C to 80°C)
-13°F to 248°F (-25°C to 120°C)
Enclosure Ratings
IP67 IP68
Materials
SUS304 Stainless Steel or SUS306 Stainless Steel
Temperature Range
-40°F to 300°F (-40°C to 150°C)
Power Source
Pneumatic
Maximum Allowable Operating Pressure
Up to 145 psig (10 Bar)
Control Options
On-Off, Throttling, Double Acting, Spring Return
Mounting
VDI/VDE 3845 Compliant (NAMUR) or ISO 5211 DIN337
Supply Media
Dry Compressed Air, Inert Gas
Conduit Ports
1/4”NPT or 1/2”NPT or 3/8”NPT or 1/4”G or 1/2”G or 3/8”G
Travel angle
0-90°
Certifications
ABS, ATEX, Bureau Veritas, PED, SIL 3
Valve Compatibility
Butterfly Valves, Ball Valves
